STANDARDS
IEC 60601-1-2:2014
IEC 60601-2-18:2009
IEC 60601-1:2005+A1:2012
ISO 13485:2016
Technical Specifications Of Cystoscope
Model S2101-AC
Minimum visible distance
Field of view
Direction of view
Image quality
Light intensity
Outer diameter
Length
Distal componets
4mm
120°
Direct
HD 720p
2 × 800mcd
5.5mm
380mm
Inner diameter of instrument channel
2.2mm
Rotation Range
Ordybehesht S2101 - BC
210° Up & 130° Down

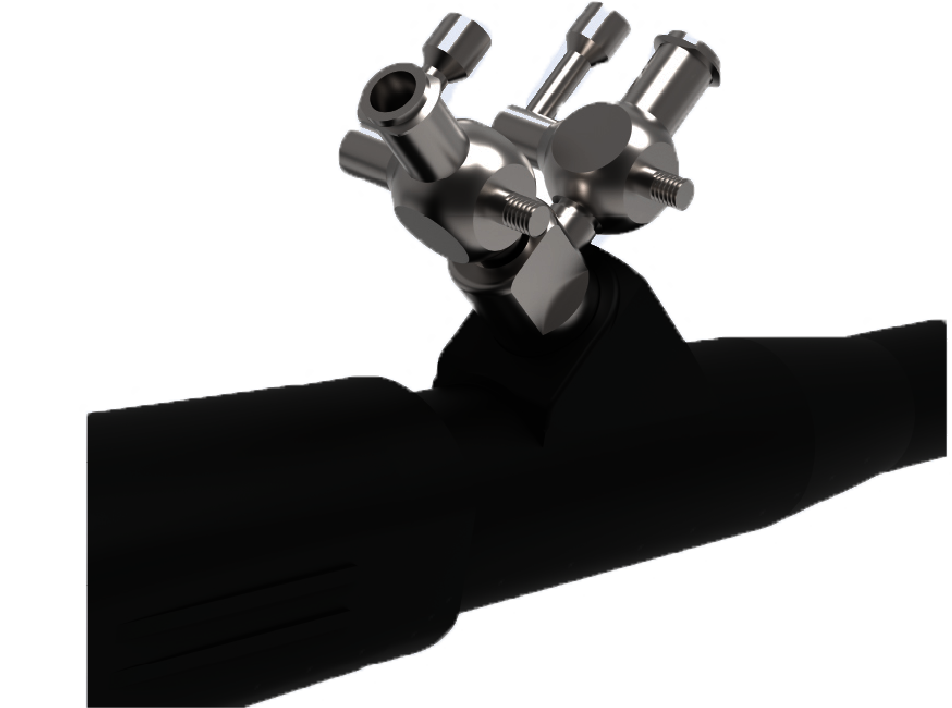

The instrument channel with the inner diameter of 2.2mm allows the use of all standard Cystoscope instruments.

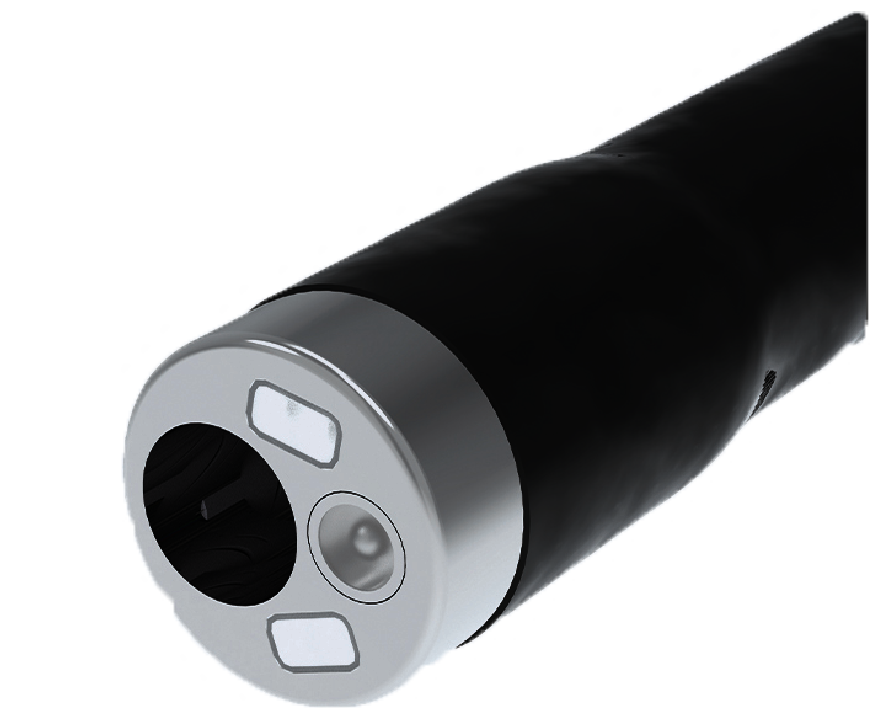

Cystoscope S2101-AC provides high resolution and high quality image by using a HD miniature camera and creating neutral white light by two LEDs.

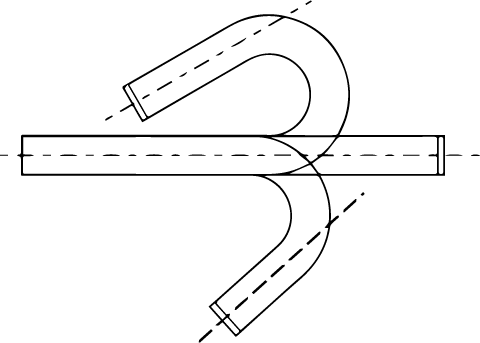

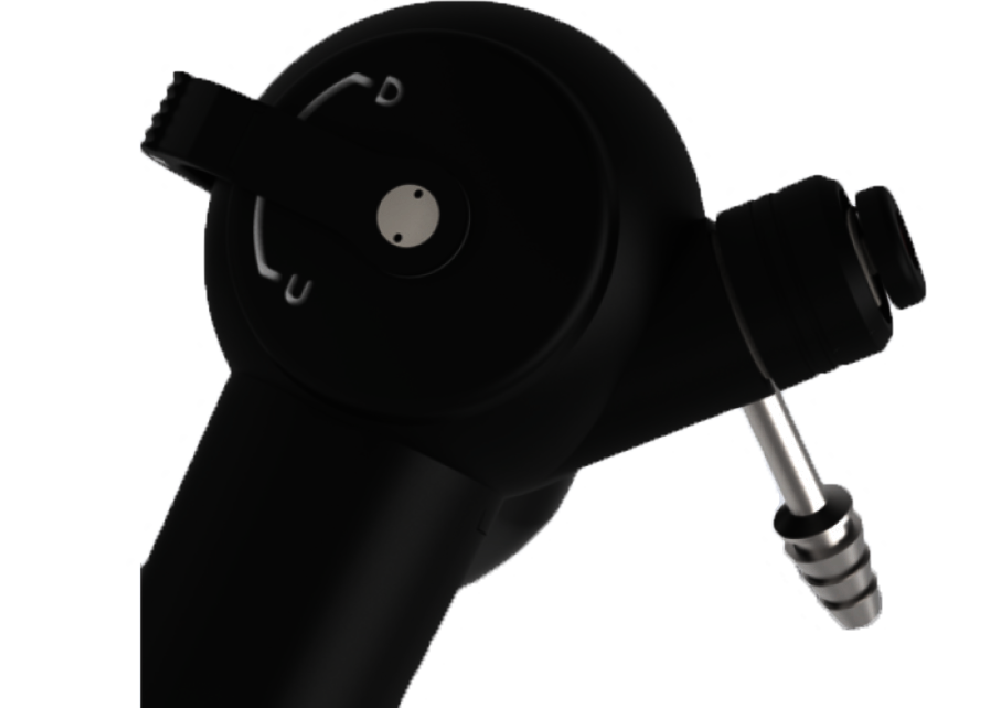

The angle control lever allows for a smooth and continuous rotation of distal end in two directions, which leads to increased viewing angle and right place instrument positioning.
