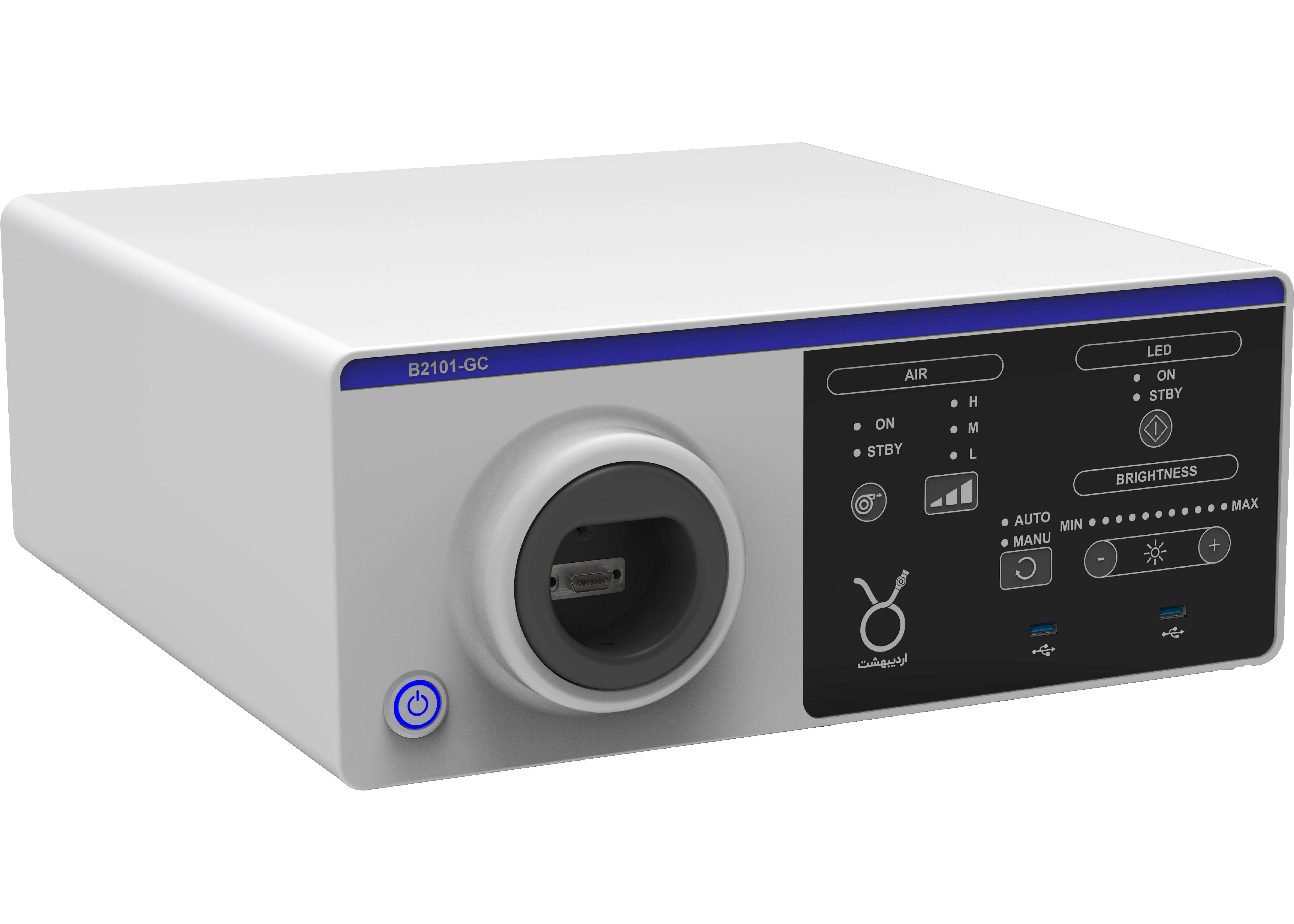

The B2101-GC image processing and control unit adjust light intensity, air flow and transfers camera images to the display by connecting to Ordybehesht B2101 series endoscopes.
STANDARDS
IEC 60601-1-2:2014
IEC 60601-2-10:2009
IEC 60601-1:2005+A1:2012
ISO 13485:2016
Technical Specifications Of Image Processing & Control Unit
Model B2101-GC
Physical Characteristics
Dimensions
Mass
160 × 400 × 410mm (HWD)
13kg
Electrical Specification
Input Voltage
Maximum power
consumption
Protective fuse
100 - 230 V
120W
Tow non-fast 1.5A
Air Pump
Max flow intensity
Max pressure
2.5 L/min
900 mbar
Compatible Endoscopes
B2101 - AG
B2101 - AC

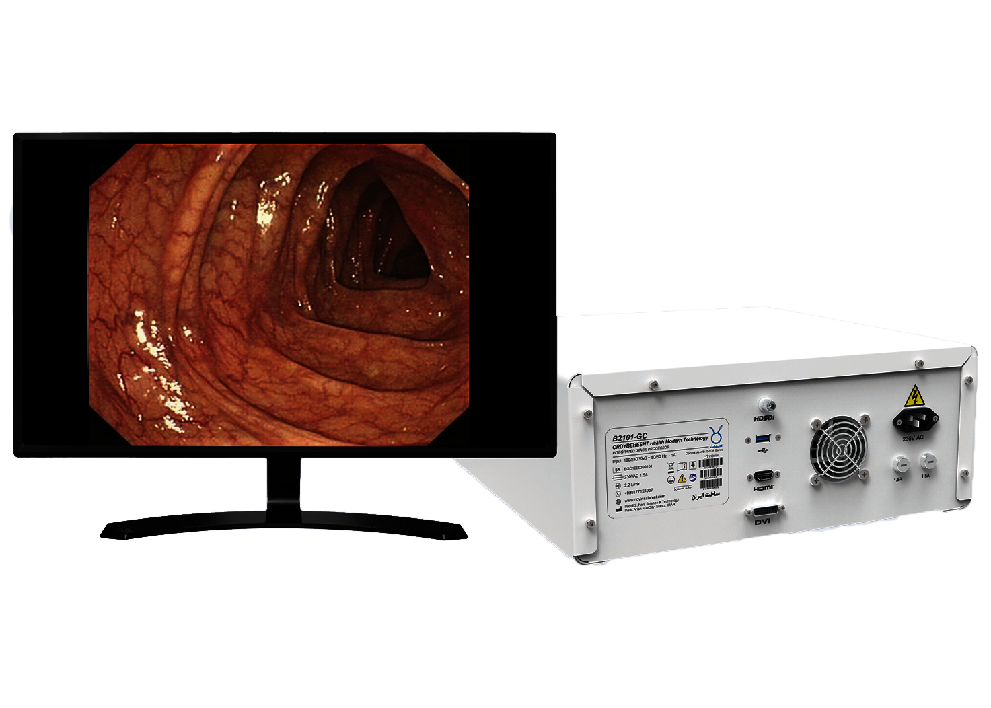

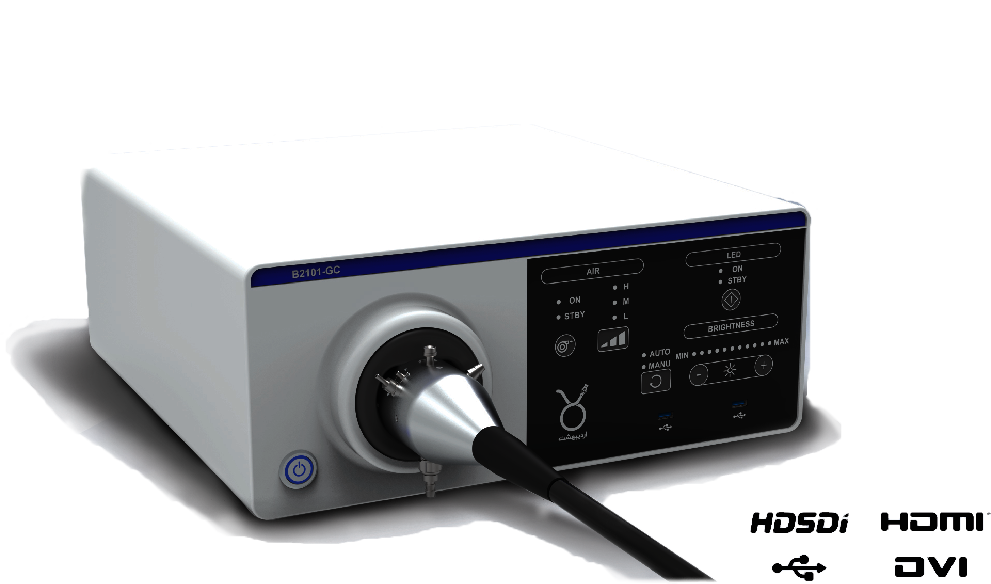

The B2101-GC device is responsible for processing the output signal of the camera and providing a high-quality image. Image transmission in this device is done by using standard HDMI, HD-SDI and DVI ports. Accessories and external memories can be used through USB3.0 ports on the front and back panels.
Image Processing
Operating system
Internal memory
Output ports
External memory port
Windows 10
240 GB SSD (Upgradeable)
3 × USB 3.0, DVI, HD-SDI, HDMI
YES
