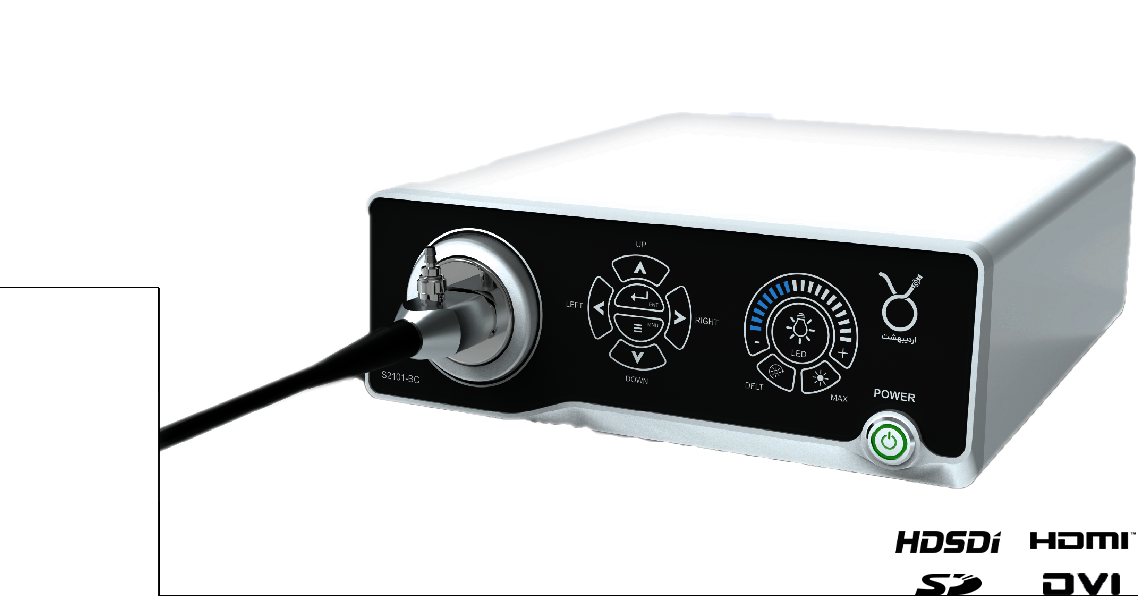

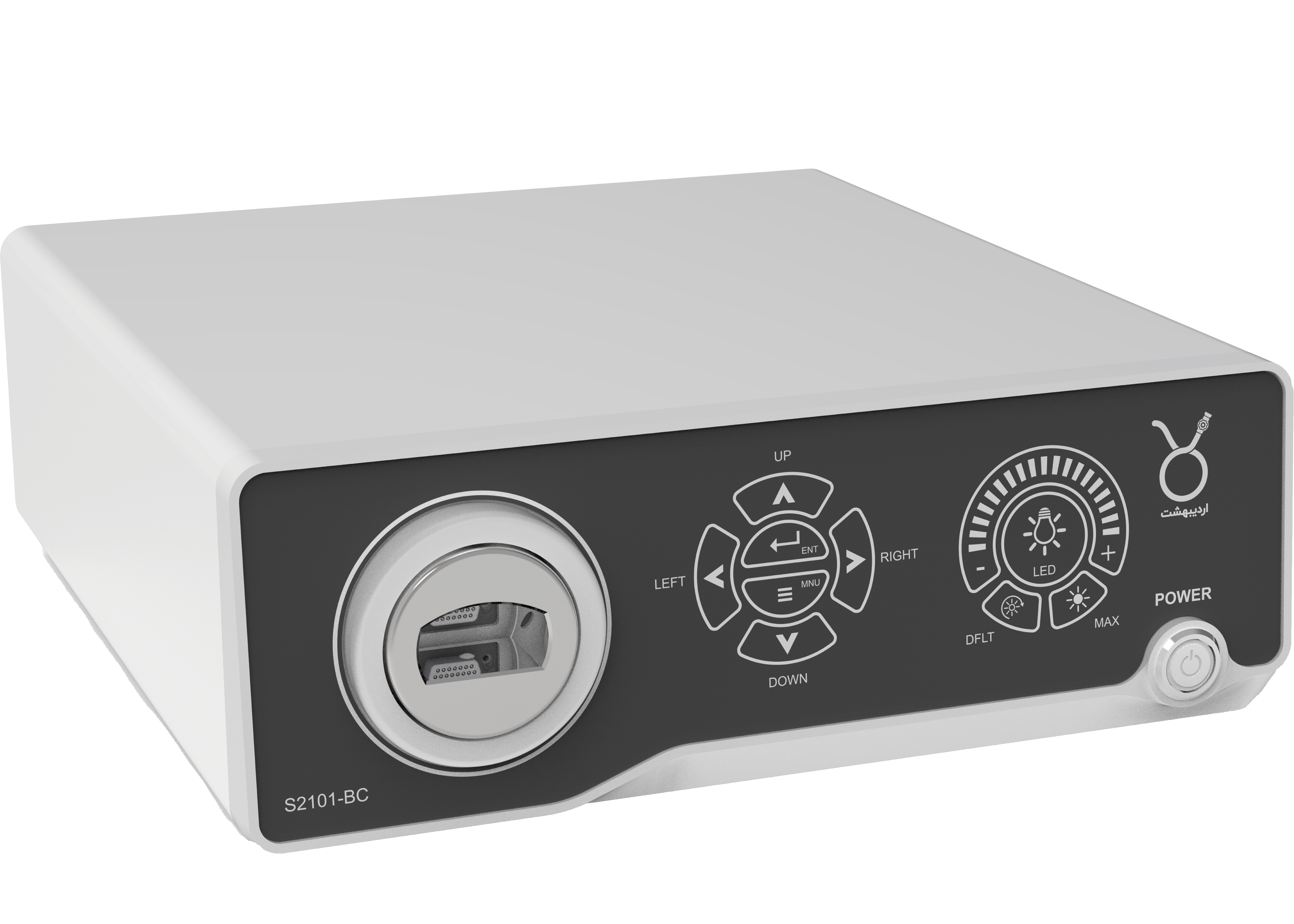

The S2101-BC image processing and control unit adjusts the light intensity and transfers the camera images to the display by connecting to Ordybehesht S2101 series endoscopes. By using the device panel buttons, the parameters of the camera output image can be controlled.
STANDARDS
IEC 60601-1-2:2014
IEC 60601-2-18:2009
IEC 60601-1:2005+A1:2012
ISO 13485:2016
Technical Specifications Of Image Processing & Control Unit
Model B2101-BC
Physical Characteristics
Dimensions
Mass
120× 350× 370mm (HWD)
8kg
Electrical Specification
Input Voltage
Maximum power
consumption
Protective fuse
100 - 230V
30W
Tow non-fast 0.6A
Copatible Endoscopes
S2101 - AC
S2101 - AB

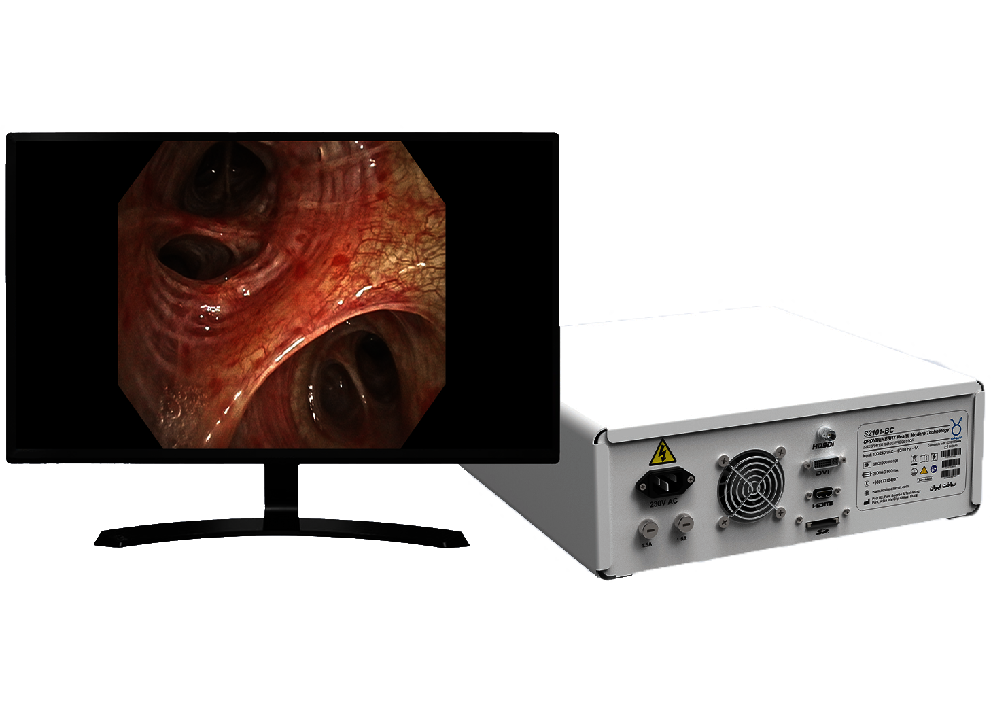

The S2101-BC device uses a dedicated electronic imge processing board. Image transmission in this device is done by using standard HDMI, HD-SDI and DVI ports. The SD memory card port on the back panel of the device allows saving photos and videos.
Image Processing
Operating system
Output ports
External memory port
Ability to save photos and videos
Dedicated software
SD Card reader, DVI, HD-SDI, HDMI
YES
YES
