S2101 - AB


IEC 60601-1-2:2014
IEC 60601-2-18:2009
IEC 60601-1:2005+A1:2012
ISO 13485:2016

Technical Specifications Of bronchoscope
Model S2101-AB

Camera & Lightning

Insertion Tube

Minimum visible distance

Field of view
Direction of view
Image quality
Light intensity

Outer diameter of
Adult Bronchoscope

Outer diameter of
pediatric Bronchoscope

Distal componets


HD 720p
2 × 800mcd

4.4mm to 6.4mm

2.8mm to 4.1mm


Inner diameter of instrument channel

From 1.2mm to 3.2mm

Bending Section

Rotation Range

Image Processor

Ordybehesht S2101 - BC

210° Up & 130° Down

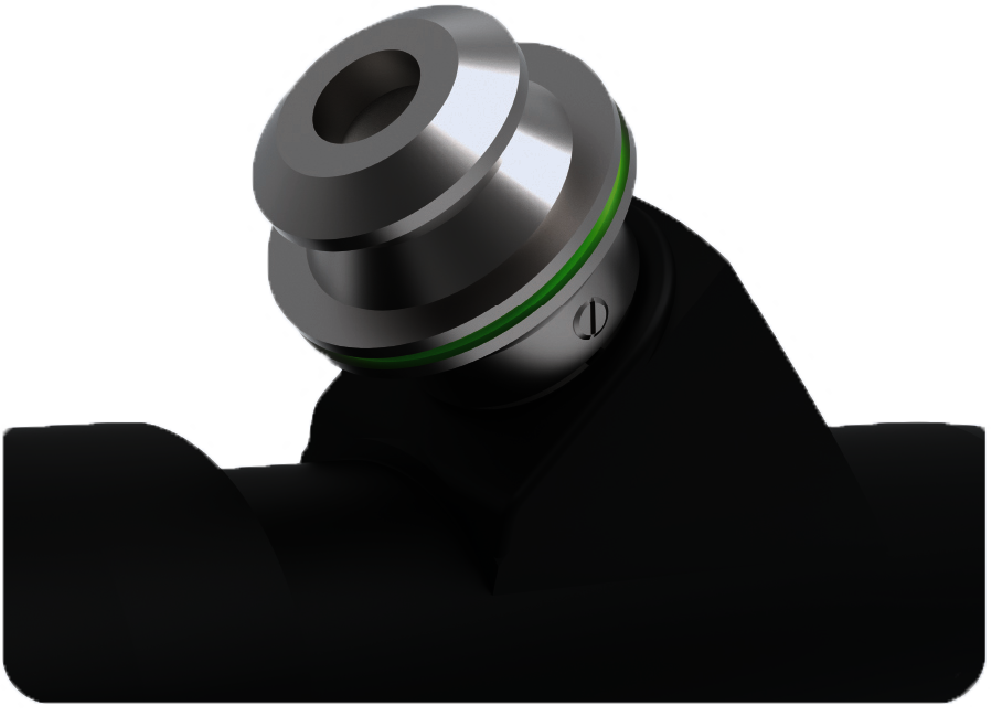

The instrument channel with the inner diameter of 1.2mm - 3.3mm allows the use of all standard Bronchoscope instruments.

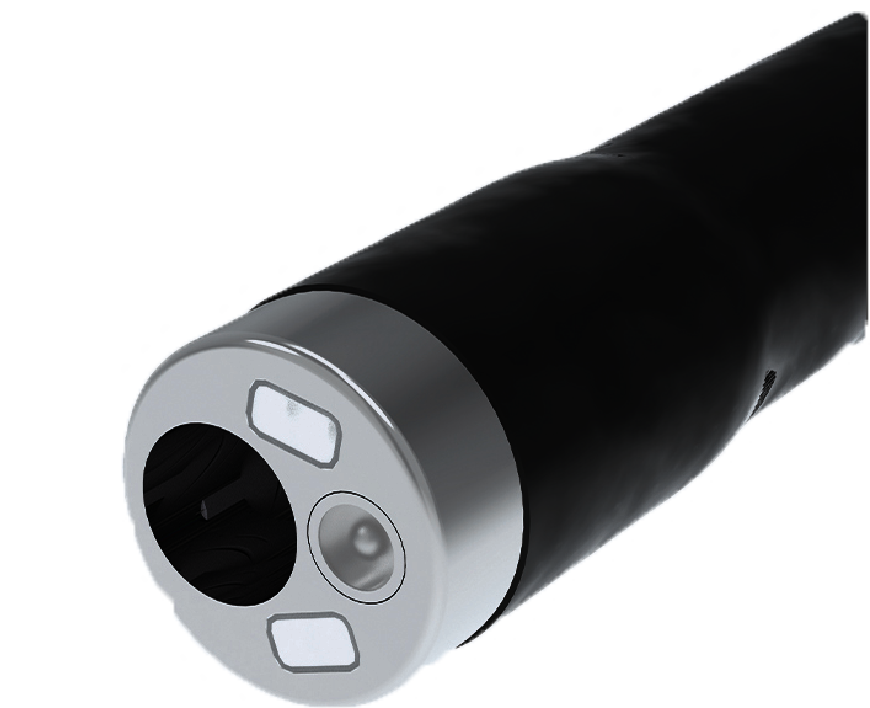

Bronchoscope S2101-AB provides high resolution and high quality image by using HD miniature camera and creating neutral white light by two LEDs.

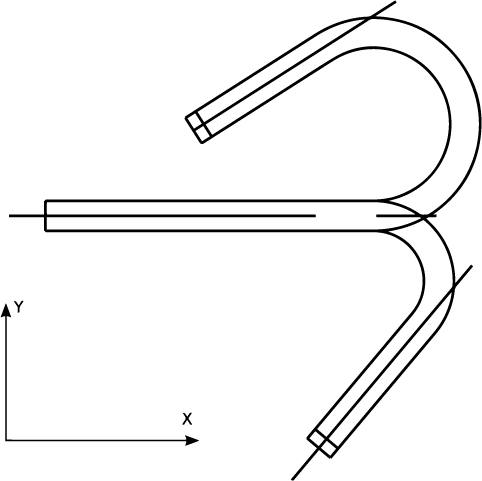

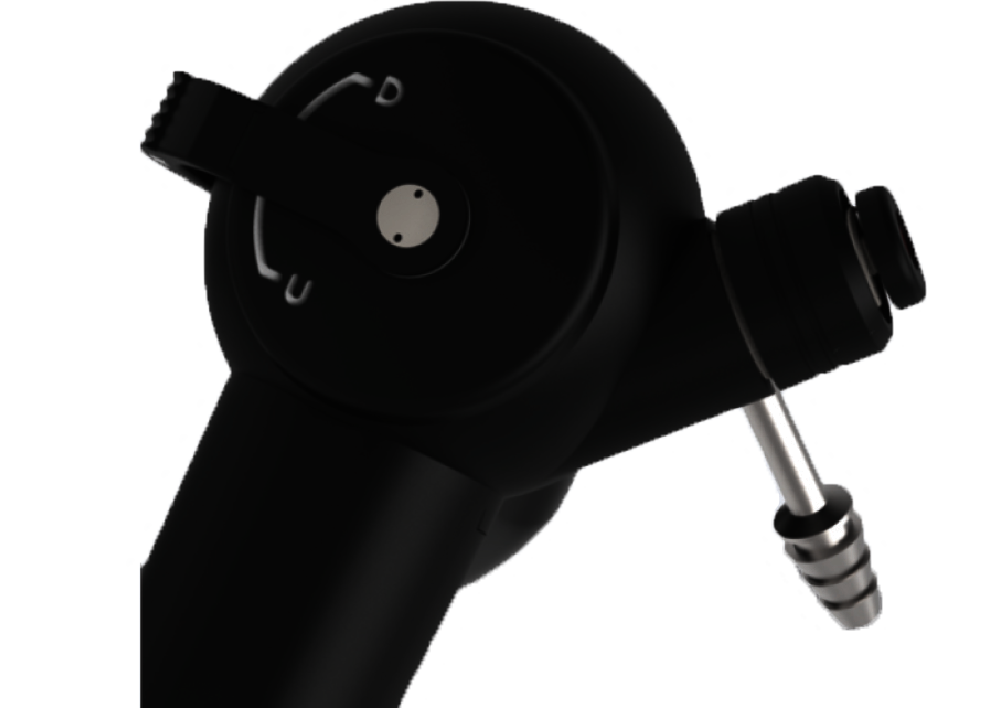

The angle control lever allows for a smooth and continuous rotation of distal end in two directions, which leads to increased viewing angle and right place instrument positioning.
